No Dogs in the Shop

DSC_0252DSC_0611Let me start by saying that I love my dogs. My dogs are always happy to see me and they miss me when I’m out in the shop.  I try to take my dogs out in the shop on days I won’t be using any power tools.

Lately, I’ve been making a pine candle box and filming the process.  I was in the middle of chopping out the dovetails when I slipped with my mallet and put a dent in the piece I was working on.  I  needed some hot water to raise the dent back up. So I headed inside to get some hot water and left the piece of wood  on the work bench.

Leaving the dogs to themselves was not the best idea, but I never thought that I would have to worry about them getting stuff that was on my bench.

When I came back into the shop I realized my dovetail piece was missing.  As I searched for the piece I heard a chewing sound coming from the corner. When I came around the side of my table saw I saw the box piece was being devoured in my dog’s mouth.bad dog bad dog bad dog

I have the whole thing on tape and I will be posting it on YouTube. I learned a valuable lesson and will never be leaving my dogs alone in the shop again.

Making Wooden Screws

There are several reason why you would want to learn how to make wooden screws. Wooden screws have many different applications, from cider presses to bar stool screws, and they can give your workbench a more traditional look.
I have found the following steps to be the simplest way to make wooden screws, it may not be the best way, but it’s simple and effective. Traditionally you would use a screw box that has a V shape cutter that cuts the threads to form a screw. I have found its hard to find a screw box in bigger diameters, so to make the size screws I like I use a router and router bit.
For demonstrative purposes, I chose to use a substandard wood for making the screw. When making wood screw for your bench, or other uses, I would suggest using a harder dense wood, such as rock maple.
To make the jig in this tutorial,  I chose to use off cuts that I had lying around. I would highly suggest that you use better wood than I do in this tutorial.
To get started you will need: a table saw, a drill press, drill bits, ruler, dividers, and a square.
Wooden screws
Wooden screws
To make the guide block, I used a block 2″ thick, 4″tall and 12″ long. In the last tutorial I used birch and here I am using fir.
Wooden screws

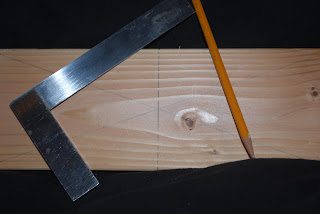

First, connect the four corners with pencil lines to find the dead center of the block. Then proceed to drill a 2″ hole in the center, for the dowel to fit in. This will help guide the dowel while cutting the threads.
Wooden screws
Using a 45 degree router bit for the cutter will ensure the same angle as the thread inside our threaded block. .
Wooden screws
The router bit is 9/16″ wide. In order to give a little room for fine tuning
I use a 5/8″ drill bit to bore the hole on top of the block where
the bit will be placed.
Wooden screws
Wooden screws

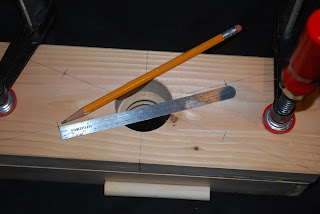

Then measure the distance from the outside of the threaded block to the center of the first thread.
Wooden screws
Next transfer that measurement to the top of the block.
Wooden screws
Wooden screws
This is where the hole is made for the router bit. I will drill the hole after
I secure the guide block to the threaded block.
Wooden screws
Wooden screws
Clamped the guide block to the threaded block.
Wooden screws
Making sure to keep everything is square.
Wooden screws
Marking the location for some dowels and screws.
Wooden screws
Mark the section of thread that needs to be removed to allow the
dowel to make contact with the router bit, it there was any thread
in front of the router bit it would stop the dowel from entering into the cutter.
.
Top hole is drilled along with the four holes in front.
Then a 1/4″ drill bit for the holes in front but only went down
until it touched the threaded block.
Barely touching the block with the 1/4″ bit I then use the marks
to drill 1/2″ holes caddie corner to one another for some dowels.
Only glue the dowel pieces to the threaded side of the jig, this
allows proper alignment when both blocks are put together.
The other two holes receive threaded inserts, that way both pieces can be screwed together.
Add some screws and washers, then put it together.
Install the router.



Adjust the router bit to the same depth of  the thread, so the router can be
screwed into place.
Marking spots to screw the router to the jig.
After marking where the screws go. Drill only one of the
spots and then put it back together.
Having only one screw holding the router down. The router can be moved slightly.
Wait to put the other screw in routers base plate until you test it first, that way you can make
small adjustments and fine tune it.
If  you are worried about the router plate cracking, or it doesn’t feel safe
enough go, ahead and put temporary screw on
the non threaded side, so after your adjustments
you can put another permanent screws on the threaded side of the jig.



Wooden screws

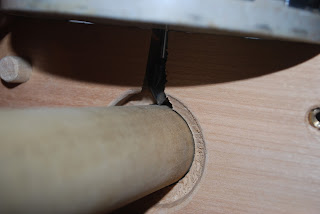

Time for some test cuts.
Wooden screws
Test cuts were good so the only things left is to make a space
for the shavings to fall through and add two pieces on the back, so it can
be clamped in a vise.



Wooden screws
Here is the location, you will need to make a spot for the
shavings to fall through.

Wooden screws



Wooden screws

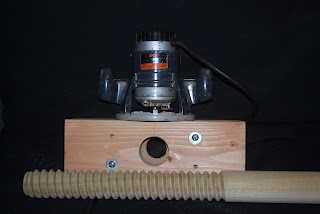

Now you have a nice screw, not perfect but nice.
Wooden screws
There is another way to make threads using the router that will limit the amount of chip out, that can occur with the method above. If there is enough interest and feed back in the other method I will make another tutorial showing how to do it. Leave a comment if you would like more on wooden screws and leaving positive feed back is always welcome.

Cabin Pantry

As summer comes to an end, I have finally completed the cabin pantry! My client, and very good friend, was extremely happy to receive it.
This pantry is massive at 8ft long and nearly 8ft tall. In order to fit through the cabin door, I built the pantry in four sections. Unfortunately, I didn’t think to take pictures of it apart.
To give the pantry a more seamless appearance, the door panels, the stiles, and rails were all cut to ensure grain continuity.  The stiles and rails are joined with mortise and tenon joints.



The door panels were too wide to fit through my planer, so I had to break out the hand planes. The pantry sides were connected with hand-cut half-blind dovetails that, although not necessary, were great practice.

After several months of taking up room in my shop, I am so happy to have the pantry finished and gone! I look forward to the coming months, and more time in my shop.

Making a Tap and Nut

In the woodworking community there seems to be an explosion of obsessed woodworkers building workbenches, yes I fall into that category of being an obsessed woodworker too, but I have no bench.  Recently I’ve been planning on making a workbench, but it costs a lot. I figured that I might not be the only one with a thin pocket-book, so I thought I would share some cost saving techniques when building your own bench.  One way to save money is by making your own screws for a vise on your work bench. In this tutorial I show how to make a tap, which will be used to make a nut. The nut will be used in my next tutorial to show how to cut the threads for the wooden screws.

Material list

  • One 2″ hard wood dowel 18″ to 24″ long.
  • Two 8/4 hard wood blocks 4″ by 12″
  • Two pieces of 4/4 2″ by 6″
  • One piece of 1/8″ or 1/4″ tool steel 1/2″ wide by 2″ long.
  • One piece of sheet metal the same thickness as the kerf                  your handsaw makes 1 1/2″ wide by 12″ long.
  • Glue.
  • Clear tape.
  • Graft paper.
  • Optional 8/4 hard wood 3″by 3″
  • Optional 3″ circle of sheet metal at kerf thickness.
  • Optional Four wood screws 1 1/2″ long.



Tools needed

  • A wood shop
  • Pencil.
  • Ruler.
  • Square.
  • Couple claps..
  • 2″ forstner bit.
  • 1/8″ drill bit.
  • 1/8″ chisel.
  • Hand saw.
  • Tin snips.
  • Metal file.
  • Drill, preferably drill press.
  • Band saw.
  • Table saw.
In this tutorial I used a two inch poplar dowel
and two birch blocks that are 2″ thick,
about 4″ tall and 12″ long.
I’m using  poplar and birch to demonstrate
how to make the tap and nut. The best woods to use
however is a hard dense close grain wood, like
hard maple or a fruit wood.
To start you will need to pick the face side on both
of the two birch blocks. Now find the center on each face
side and mark them. You will need to repeat this
process for the top and bottom of the blocks.
I then wrap a strip of graft paper around
the dowel to measure the circumference.
I transferred the measurement
on to a full length of graft paper.
On the graft paper I laid out
my lines so that I would have two teeth per inch.
To make right-handed threads I start from the
top left at zero and draw a diagonal line to the bottom a half an inch over. I repeated this every half an inch. If I had drawn the lines
slanted the other way it would have made them left-handed threads.
Trim up the graft paper to the desired length.
The longer the length the thicker the
nut you will be able to tap. I saved
a piece of the cut off graft paper to help with the
layout on one of the birch blocks.
Using clear tape, tape the paper to the dowel. Make sure to leave a little of the dowel exposed at the front of the tap.
This is so that when you tape the ends the tape will be half on the paper and half on the dowel.This will secure the paper when cutting close to the ends.
The lines on the graft should
line up with each other to make a spiral. Before
cutting the spiral I grab One of the birch blocks.
I find the center mark on the top that I marked earlier. I then take the piece of graft paper that is marked
with the same angle as on the tap.
Mark the center diagonal line of the
graft paper on to the left and right side
of the block.
Center your paper with the center mark
that is on the top of the block.
I connect the two marks,
drawing a line across the top.
On the front face measure up one quarter
the thickness of your dowel (for a
two inch dowel measure up a half an inch.)
Then transfer the mark
to both ends of the block.
Then extend the marks from the front
and top of the block, across and
down the sides of the block. This shows
where to cut and how deep to cut,
for installing the strip of metal.
After all the layout marks have been made
on the one block. I drill a 2″ hole through the
center of both blocks.
I grab the block that has the diagonal
layout line on top and cut the top line to
intersect with the horizontal layout line
that is on the end of the block. I then
install the sheet metal into the kerf.
Depending on the depth of the cut line
you may need to file the metal to fit
around the center of the tap. when the tap
is twisted in, the metal will slip into the
spiral, pulling the tap forward.
 I put the dowel through the holes
in both blocks, to secure the dowel
while cutting the spiral.
I only cut a half inch deep.
This is after the iron is cut to size, shaped
and tempered. I cut a mortise in the dowel to
house the iron. This was easily done
with an 1/8in drill and a 1/8in
chisel.

The iron is 1/2″ wide and 2″ long. I cut it from an old plane iron I had lying around the shop.  I heated the iron up with a small torch until it was red-hot then slowly let it cool to make it more ductile. I couldn’t shape it until after it was annealed.  I filed a 45 degree angle on both corners, so the point is a 90 degree angle. I squared the edges of the iron to its face on a couple sharpening stones. I turned the torch back on and slowly started to heat the iron. The iron starts to change colors the hotter it gets. The colors are easy to see on the polished surface of the iron. It’s important to make sure not to heat just the very tip. I kept the heat towards the back of the iron and slowly watch as the colors crept up to the tip. The iron changed from a yellow to a brownish yellow color, to purple then blue. The blue is a little to hot, so as soon as you see the purple reach the tip dunk it in a cold cup of water (this will make the iron hard again and keep its edges sharp longer.)

I ended up removing some of the material
between the two pencil marks,
with a small gouge, to allow
a place for shavings to collect.
The iron is kept in with a hard maple
wedge that I cut flush
with the surface of the tap.

The next few steps show an alternative way to installing the metal piece that helps pull the tap through the jig. The above process maybe a little easier and works just fine. I cut a piece of 8/4 into a 3″ circle, with a jig on the band saw to make it perfectly round. I do the same steps as above, laying out on graft paper two teeth per inch for a three inch circle. I tape the paper on the circle and cut the spiral with a hand saw just a hair deeper than an inch, making sure not to cut all the way to the end of the spiral. I leave wood on both ends, this will keep the spiral together when drilling the 2″ hole through the center. I then mark the center of the circle and drill a two inch hole. I saw down one side of the circle and the spiral separates into two halves. I lined up the hole on one half with the hole in the birch block and glue it together. I made a 3″ metal circle and cut a 1 1/2″ hole in the center of it. I then cut through one side of the circle. Now I sandwich the metal between the two spiral halves, drill four holes through the sandwich and screw it into place. This will give me a 1/4″ metal spiral that the tap can twist into.

I rounded the sharp corners of the metal
to keep it from snagging the inside
walls of the spiral.
This way gives one complete turn with
a metal thread. Using this type of thread
allows less wear and tear on the tap,
because it gives equal
pressure around the taps spiral.

I added blocks to the front to give a space
for the cutter go into when exiting
the nut .
Here I clamp the other birch block
onto the jig and insert the tap.

I slowly raise the cutter after every other
pass, if  I raised it to fast I r could risk ruining
the threads or possibly breaking the tap.
I take my time twisting the tap through.
slow and steady seems to make
the best results.
Do not worry if there is a little tear out
in the end grain of the nut. To help with tear out I
remove the tap before the last couple passes
and stabilized the end grain
with some C.A. glue.
Finished product, This will become the jig
for making the threads for the screws.

Marking Gauges

Marking gauges and cutting gauges are definitely an essential tool in my shop and it seems that I am always in need of more. When working on projects that use a mix of material at different thickness, or just a project with a lot of different measurements, I like having the option of setting a gauge and leaving it that way through the entire project. When I use the same gauge for different measurements and then try to set it back to its previous measurement I’m always off by just a hair and end up having  discrepancy in the project. So it’s always nice to have a few extra marking gauges lying around.

I used a 2.5degree angle on the
wedge that holds the cutter in place.
I like to use about a 5degree angle
on the wedge that holds the marking  position.

Same 5 degree angle for the wedge.

These are just two of the most recent gauges I’ve made, they are quite simple and the best part they cost nothing to make. They are made from scrap wood lying around the shop that were destined for the fireplace. I love making my own tools especially ones I use every day.

Made from an apple tree cut from our back yard.
Notice the grind of the pin its ground
flat on one side and rounded on the other
